Measuring What Matters in the Cloud: Cloud Networks Lack Reliable Visibility into Communication Quality

As cloud services continue to underpin 5G, AI, IoT, and mission-critical applications, the ability to accurately measure communication quality has never been more important.

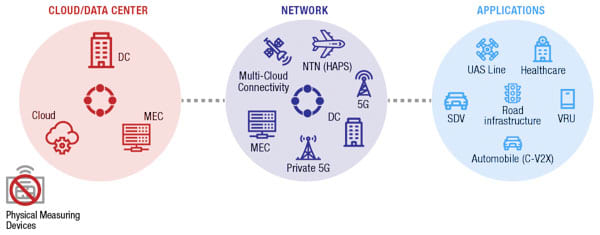

Traditional communication quality measurement relies on physical test instruments deployed at fixed network points. In cloud and virtual environments, this approach breaks down because physical instruments cannot be installed inside cloud servers or virtual machines. As a result, engineers are often unable to see what is truly happening along dynamic end‑to‑end communication paths spanning virtual and physical networks.

This is the challenge Anritsu set out to solve with the Virtual Network Master for AWS MX109030PC, a software-based communication quality measurement solution designed specifically for cloud and virtual environments.

Why Conventional Tools Fall Short in Virtual Environments

In cloud and virtualized networks, communication paths change dynamically across hypervisors, virtual switches, and distributed data centers. To fill this gap, many teams fall back on software utilities like Ping or iPerf, but these tools introduce their own problems:

• • • They cannot measure one-way latency, only round-trip time.
    • They do not generate stable, application-equivalent traffic loads.
    • Results vary depending on CPU load and operating conditions, reducing reproducibility.
    • They offer limited insight into uplink/downlink asymmetry, which is critical for modern applications.
    • They fail to capture the impact of virtual layers on communication quality.

The result is a critical blind spot:
Network teams cannot quantitatively evaluate real communication quality in cloud environments, making it difficult to design networks, validate redundancy, troubleshoot performance issues, or guarantee service quality for latency-sensitive and mission-critical applications.

A Software-Based Measurement Instrument Built for the Cloud

The Virtual Network Master (vNM) takes a different approach. By converting the functions of physical measuring instruments into software, vNM can be deployed directly inside cloud servers and virtual environments, without the need for dedicated hardware.

The MX109030PC enables accurate and reproducible evaluation of network quality, even in environments where physical test equipment cannot be installed. It is compatible with AWS cloud environments and supports measurement points within virtual communication paths.

What the Virtual Network Master Measures

The MX109030PC supports active testing using real IP traffic, allowing it to evaluate communication quality under conditions that closely mirror actual application behavior. Supported measurement items include:

• • • Throughput (UDP)
    • One-way latency
    • Frame loss rate
    • Jitter

Unlike conventional tools, vNM can generate stable traffic loads and independently measure uplink and downlink, which is essential for applications such as video transmission or asymmetric data flows.

High‑Precision One-Way Latency Measurement

One of the key differentiators of the Virtual Network Master is its ability to measure one-way latency by synchronizing time using NTP or GPS. Time information is added to each measurement frame, enabling:

• • • Per-frame latency recording
    • Aggregation of maximum, minimum, and average latency
    • Visualization of latency fluctuations at one-second intervals

This approach enables capturing even instantaneous latency spikes that would be missed by round-trip measurements alone.

Visualizing End-to-End Communication Quality

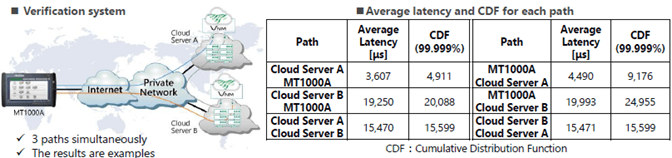

By deploying vNM on multiple cloud servers, users can simultaneously measure different communication routes, such as:

• • • Internet routing versus inter-cloud regional routing
    • Primary and backup routes in redundant configurations

Visualizing these differences helps service providers evaluate route reliability, make informed switching decisions, and assess the performance of backup paths.

For mission-critical systems, such as autonomous driving or advanced industrial applications, vNM enables quantitative visualization of end-to-end latency, supporting optimized system design and determination of allowable latency thresholds.

From Field to Cloud: Extending Measurement Coverage

The Virtual Network Master can also be used with the Network Master Pro MT1000A/MT1040A test instruments. This combined configuration enables consistent end-to-end evaluation of communication quality from cloud and core networks through to field-deployed devices.

Designed for Practical Operation

The MX109030PC is operated via a web browser GUI, making it accessible without specialized client software. Active testing parameters, such as line load and frame size, can be tailored to match application requirements, helping teams move beyond “best guess” testing toward repeatable, quantitative evaluation.

Supporting the Future of Network Quality Management

As applications continue to move toward cloud‑native and virtualized architectures, communication quality measurement must evolve as well. The Virtual Network Master for AWS MX109030PC addresses this shift with a measurement solution designed from the ground up for virtual environments.

By providing accurate, reproducible, and application-relevant insights into network performance, Anritsu’s Virtual Network Master helps engineers and service providers design better networks, troubleshoot with confidence, and deliver higher-quality cloud services.

Learn more about the Virtual Network Master MX109030PC, Anritsu's software-based test solution measuring communication line throughput, frame loss, latency time, and packet jitter every second, up to four data streams.
